This is the fifth part of building line of business application using MVC 5, you can read the previous parts through the following links

1. Building a LOB application with MVC 5 – Part 0
2. Building a LOB application with MVC 5 – Part 1
3. Building a LOB application with MVC 5 – Part 2 – Models and Generic Repository
4. Building a LOB application with MVC 5 – Part 3 – EntityFramework

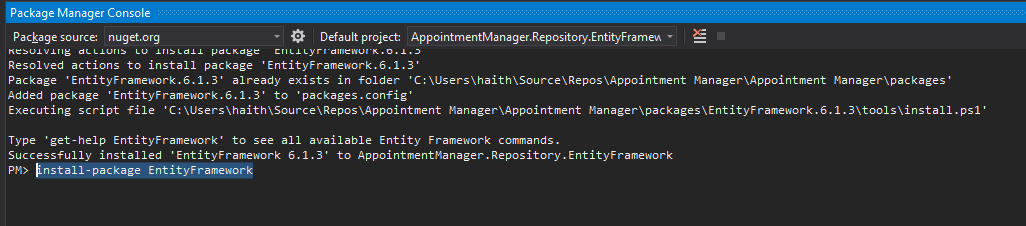

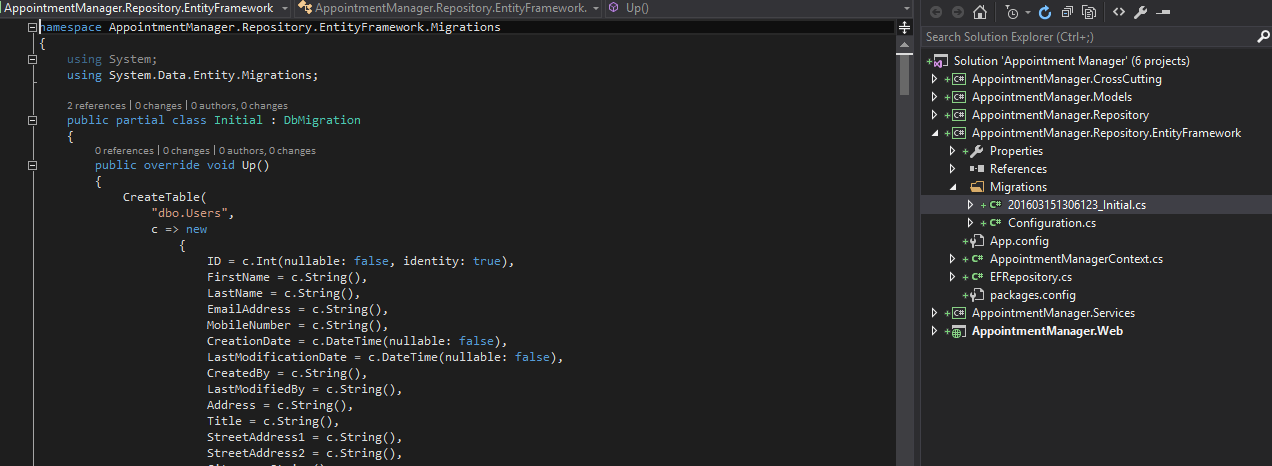

In the previous part, we introduced EntityFramework code first migration and created the generic repository using EF, then we applied the migration to create a database and ran some unit tests to make sure our Repository layer is working fine.

In this part, we will introduce Controllers, routes and areas

MVC Controllers

The “C” in MVC, if you recall some design patters, you may heard of the Front Controller pattern, this is basically the guy at the front door who receives the request, validate it, call whatever services for you and later forward you to the suitable view.

To understand how controllers work and how the URL you type in the browser is mapped to a piece of code, lets see how the MVC application life-cycle works, but take into consideration that MVC is based on the same System.Web used in Web Forms, so they share some life cycle events

1. A request is received by the IIS Server and forwarded to an MVC handler, this is a normal HTTP handler
2. MVC handler gets the request and invokes the routing API which we will explain later and it examines the route table to see which controller and action should handles the request
3. The MVC handlers creates the controller using the method CreateController from the interface IControllerFactory, the default implementation for this interface is DefaultControllerFactory, it simply create a new instance from the controller class, if your controller constructor doesn’t have parameter-less constructor, this method will fail and throw and exception, later when we see dependency injection, we will see how to override the default controller factory by calling ControllerBuilder.Current.SetDefaultControllerFactory in Application_Start in Global.asax.cs
4.  Invoke authentication filters, we will read more about filters and authentication in future posts
5. Bind query string parameters, form values and route values to the action method parameters using the default model binder, we will see later how to build custom model binders
6. Invoke the action and action filters
7. Execute the results(View, Content, Empty, JSON, File) and any result filters
8. Send the response to the user

You can read more about the MVC Application Life-Cycle here

Convention over Configuration

You can think of a controller as a way to group a module features together in one place, for ex: a CustomerController will have all the code related to Customers like Browse Services, view service details ..

By Default MVC 5 works with the convention over configuration model, it means you will not find a code that maps the exact URL to the exact controller name and action, nor you will find a config that tells how to relate the action name with the view page, this is all following a specific convention.

1. URL mapping to controllers and actions is configured using routing template
2. Every controller in the controllers folder will have a folder inside the Views folder with the same name without “Controller” word
3. Every action inside  controller will have  a view inside the Views\controller folder with the action name unless you specified another view name explicitly

Now, lets create some controllers that will be used in out Appointment Manager application

1. In the AppointmentManager.Web project, right click the Controllers folder and choose Add -> Controller
2. You have 3 options, either an empty controller which is self explanatory , with read/write actions which is created with some get, post, delete and put methods, and the last one is used when you have an entity framework context inside your web project which is not recommended, this option created a CRUD controller for the selected entity, ex: if you selected our DB Context and choose the entity as Appointment, then it will generate CRUD for the appointment class, in our case, we will choose Empty
3. Enter the name as “Customers” and Click Add, this will create an empty controller with a single action called Index

If you have a look at the Index action, you will find it has some few properties

 public ActionResult Index()
        {
            return View();
        }

1. The method is public
2. The return type is ActionResult or anything that inherits from IActionResult
3. It used a helper method called View to return an object that inhers from ActionResult , there are many other help functions like File(), Json(), Empty()

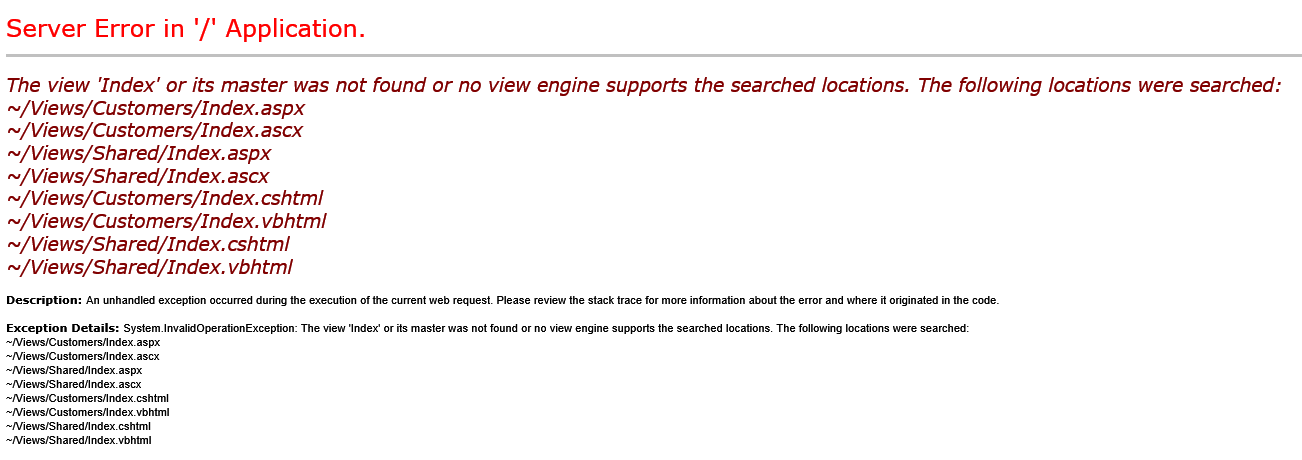

By default the action has no view, and if you run the application now and navigated to http://localhost:16106/Customers/, you will have the following screen, your application may be running on a different port

This is the convention over configuration part, it tried to find a view with the name Index which is the action name in the path View/Customers and Views/Shared, and since we didn’t specify a view name in the return View() method, then it fails.

To create a view, you can either go to related view folder for your controller and create a view with the same name as the action using Right Click, Add new item, and Select view.

or you can just right click in the action method and choose “Add View”

Now, Lets create the needed controllers along with its actions and views

1. Customers
   1. Services
   2. Providers
   3. ProviderDetails
   4. BookAppointment
   5. Calendar
2. ServiceProviders
   1. Calendar
   2. AppointmentDetails
   3. ManageServices
   4. AvailableTime

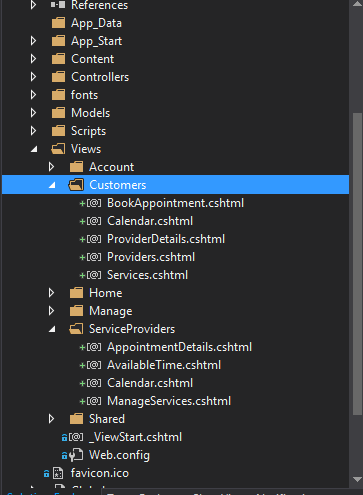

Create empty view for each action, after you are done, your views folder should be the same as below, you can of course change the name as you like, and you can now navigate to each path and make sure it opens without errors, the path should be controller name/action name, ex: Customers/Calendar

Routes

When we opened the URL http://localhost:16106/Customers, it automatically knew that URL should be handled by the Customes controller, the Index method, this is configured in the file App_Start\RouteConfig.cs

This is the content of the file:

 public class RouteConfig
    {
        public static void RegisterRoutes(RouteCollection routes)
        {
            routes.IgnoreRoute("{resource}.axd/{*pathInfo}");

            routes.MapRoute(
                name: "Default",
                url: "{controller}/{action}/{id}",
                defaults: new { controller = "Home", action = "Index", id = UrlParameter.Optional }
            );
        }
    }

the most important line is the one that defines the “Default” route, you can find the url property that has the value “{controller}/{action}/{id}”, and the line below it, it specifies default values from these placeholders, in this case if the URL was http://localhost:16106/ without anything else, this means the controller will be HomeController, and if you specify  the controller but no action, like the case in http://localhost:16106/Customers, then, the action will have the default value “Index” which why the Index action is called when we didn’t specify it.

You can add as many routes as you want, but make sure to make the most specific at the top, think of it like exception handing, if you put a try and catch and inside the catch you put the root Exception class, then any other catches will not be called as the Exception class will map to all exceptions.

ex:

 routes.MapRoute(
                name: "Default",
                url: "{controller}/{action}/{id}",
                defaults: new { controller = "Home", action = "Index", id = UrlParameter.Optional }
            );

            routes.MapRoute(
               name: "Calendar",
               url: "Calendar",
               defaults: new { controller = "Customers", action = "Calendar", id = UrlParameter.Optional }
           );

In this case, the calendar route will never get a chance to fire, because the path: /calendar will be alreayd cought by the default route and the controller will be mapped to Calendar and you will find an exception that it can’t find any controller with the name Calendar, so you have to put the calendar route before the default route

There is also Attribute based routeing, where you simply put an attriibute before the action name or controller name like the below

 [Route(template:"Customers/BrowseServices")]
        public ActionResult Services()
        {
            return View();
        }

You can read more about attribute based route here on asp.net site

Areas

You noticed that we didn’t add a controller for the admin side, but in the admin case, we will have many controllers, ex: Services, ServiceCategories, Users …

It will be like a sub project, how can we isolate it from the rest of the project?

The answer is MVC Areas, it helps us to isolate business domains in a separate folder that can be handled by separate teams, in an eCommerce scenario, we would have an area for Shopping cart, another for inventory management, and another one for shipping

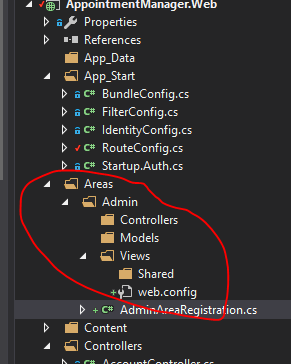

To create an area, right click the project itself and choose Add => Area and type Admin as the area name and click Add, you will have a new folder called Areas and inside it you will have the folder Admin and just inside this folder you will have the same project structure

create the following controllers inside the Admin area, to do that, follow the same instructions that we used to create the customers  and service providers controllers but this time select the controllers folder inside the admin area

1. Services
2. ServiceCategories
3. Users
4. Reports

So far, we created the needed controllers, routes, and views, in the next post, we will start working on the views and add some UI that makes the application life.

You can get the full source code from GitHub Repository https://github.com/haitham-shaddad/AppointmentManager

In the previous part of building line of business application with MVC 5, we have setup the project on TFS Online, added the user stories and introduced the application business, if you didn’t read it already, please go ahead and read it from the below link

Building a LOB application with MVC 5 – Part 0

After you are done, The project backlog should be similar to the below screenshot

In this part, we will start with an introduction to MVC, Create the solution structure and go through the moving parts.

Introduction to MVC

For many years we have been using Web Forms, Creating pages, user controls and custom dynamic controls, but when the project size gets bigger, it gets complicated and the whole framework was also tied to .Net framework release which was slow.

In 2009, Microsoft released the first version of MVC and it was not tied to .Net framework release cycle which made the release cycle of MVC much faster.

Now we have MVC 5.2 and in few months we should have MVC 6 which is a complete rewrite of MVC, but we won’t talk about it in this series.

MVC makes it easier to maintain a larger project and a large team, and as we will see, you can divide the project into sub-projects using something called Areas.

MVC has 3 main components

1. Models

   Contains your model classes, DTO, and your business services, normally the business logic layer will be in a different assembly

2. Views

   This is how your model and content will be represented, MVC can render your data in HTML view, JSON, Stream or even file.

1. Controllers

The controller will accept the user request, acting as a front end dispatcher, validate the user input, call the business logic and choose what view to use in order to render the data

You can read more about MVC through Microsoft official site http://www.asp.net/mvc

Create Solution structure

Now, lets open Visual Studio and create the project structure, you will notice that we will create a lot of projects, and I will explain what is the usage of each one.

1. Open visual studio as Administrator, I am using VS 2015 Enterprise, But if you have VS 2013, it should be the same experience

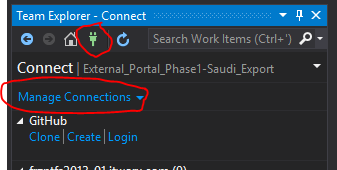

2. Click View Menu-> Team Explorer in order to link the project to TFS
3. Click the green icon > Manage Connections > Connect to Team Project
4. In the popup, click Servers -> Add
5. Enter the link for your visual studio account, ex: https://%5Byouraccount%5D.visualstudio.com
6. Visual studio will authenticate you and add the server to the list of TFS servers

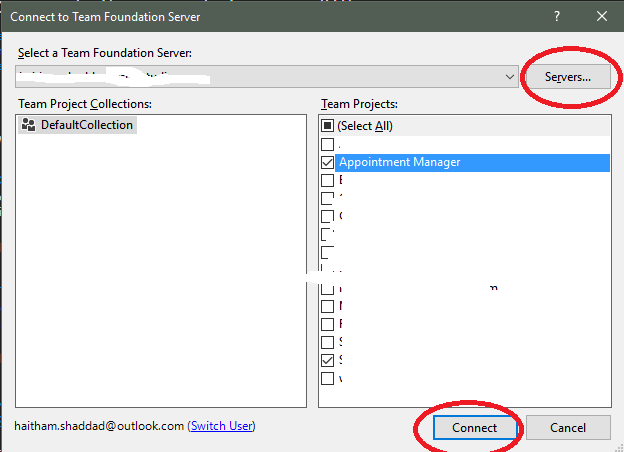

7. Make sure the server is selected in the “Select team foundation server” drop down

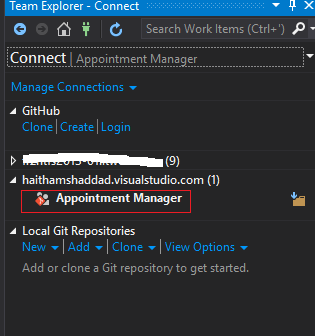

8. Select the team project from the list on the right, in our case it is Appointment Manager
9. Click Connect
10. Once the dialog is closed, you will find the server name and below it there will be a list of projects you already have, click the Appointment Manager

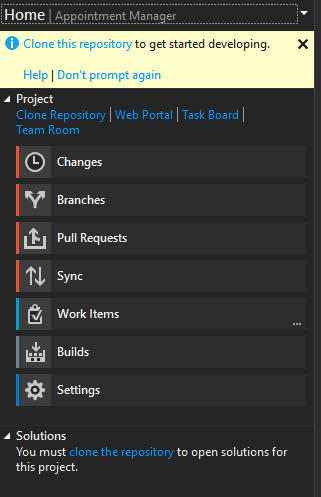

11. Once the project is selected, it will ask you to clone the project into your local machine, click on “Clone this repository” link and choose a folder on your H.D and click Clone
12. Once the project is cloned to your local work-space, you will click on the “New” link under the Solutions in the screenshot above, this will open the New VS project dialog

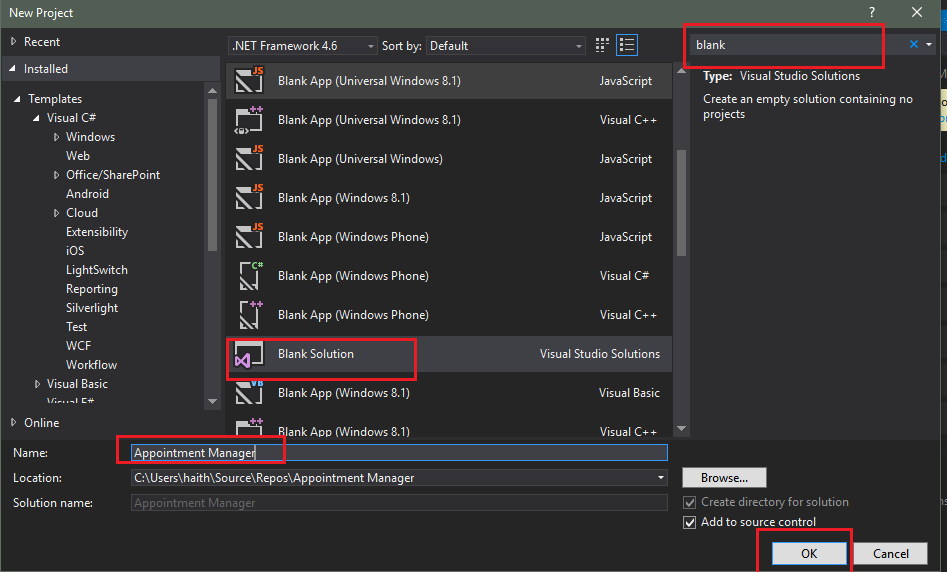

13. Type blank in the search text box and find the “Blank Solution” template, Enter the name as “Appointment Manager”, the location will be the folder that you chose when you cloned the project, keep it as is
14. Now from the menu, click View -> Solution Explorer
15. Right click the Solution and select Add->New Project
16. Select Windows from the left tree, and Class Library from the list of project templates
17. Enter the name for the project as AppointmentManager.Models, we will explain later what is this used for, once the project is created, delete the default class Class1.cs
18. Repeast Steps 14 till 17 for the following projects
    1. AppointmentManager.Repository
    2. AppointmentManager.Repository.EntityFramework
    3. AppointmentManager.Services
    4. AppointmentManager.CrossCutting
19. Add another project but in this time select web from the left tree, and “Asp.Net Web Application”, name the project AppointmentManager.Web

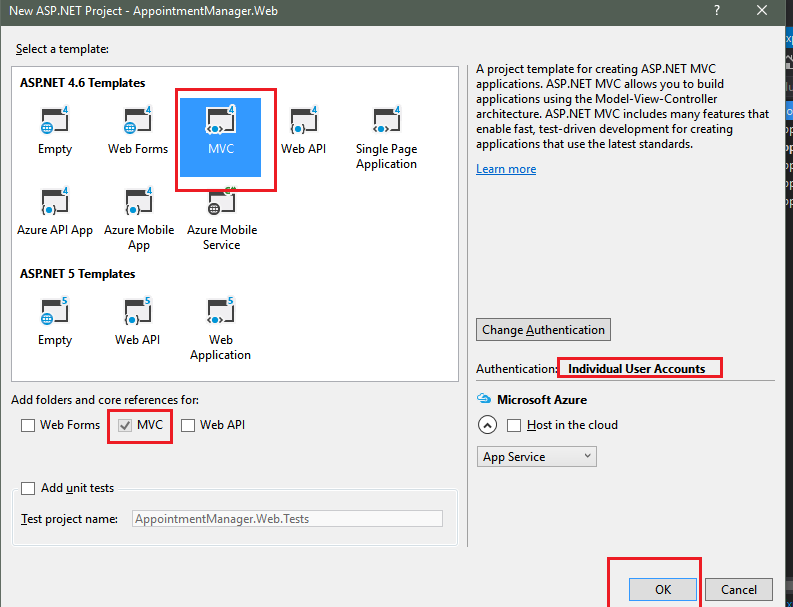

20. Another dialog will open, select MVC and keep the Authentication as Individual User Accounts for now, your screen should be similar to this

By this, you have created the solution structure, I will explain below what will each project be used for

Solution Structure in Details

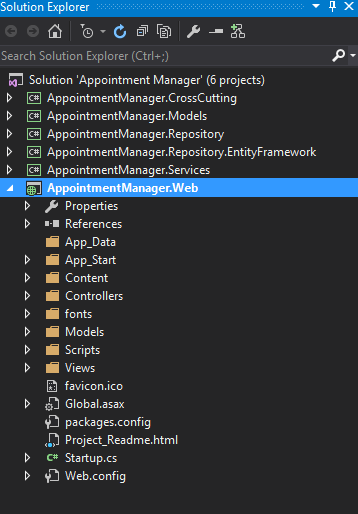

Now, you should see something like the below in your visual studio solution, I will explain now what each project will be used for
